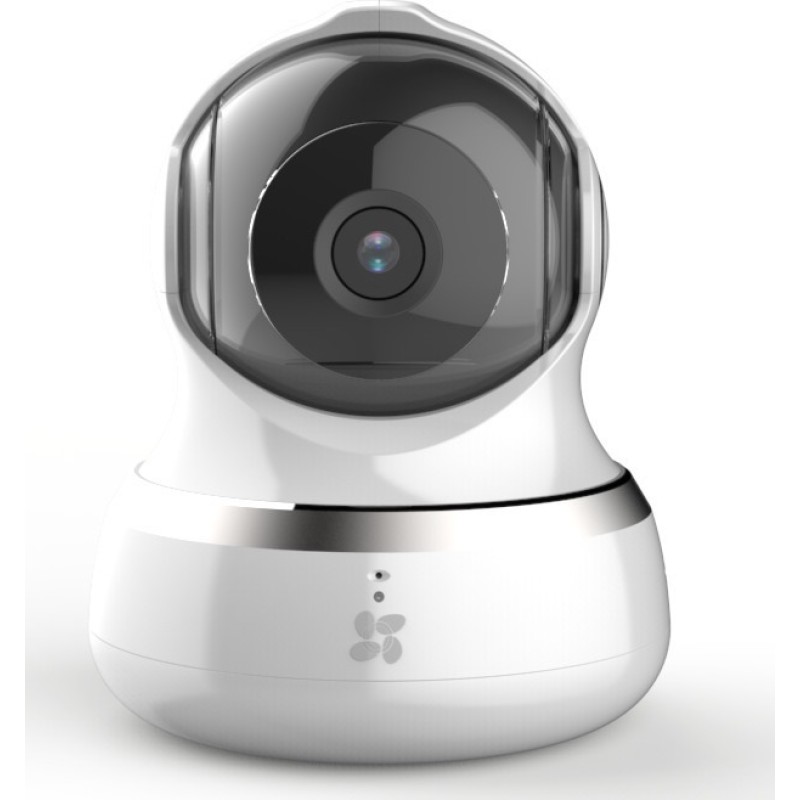

EZVIZ-C6B-CS-CV240-B0-21WFR-DATASHEET.pdfDATA SHEET
| Sensor | 1/3” Progressive Scan CMOS |
| Minimum illumination | 0.02Lux @(F2.0,AGC ON), 0 Lux with IR |
| Shutter |
1/30 sec to 1 / 100,000 sec
|
| Lens |
4mm @ F2.2 Horizontal View Angle: 72°, Diagonal View Angle: 92°
|
| Lens Mount |
M12
|
| Panning/ Tilting |
Panning angle: 0~340°, Tilting angle: 0~140°
|
| Day & Night |
IR cut filter
|
| DNR |
3D DNR
|
| IR Range |
Up to 33 feet (10m)
|
| WDR |
Digital WDR
|
| Video Compression Standards |
H.264 Main profile
|
| Audio |
Built-in microphone and speaker
|
| Video Bit Rate |
Hi-Def, Standard and Basic, Adaptive bit rate
|
| Audio Compression Rate |
Adaptive Bit-rate
|
| Max. Resolution |
1280 x 720
|
| Frame Rate |
Up to 30fps(1280 x 720), Adaptive
|
| Storage |
Support Micro SD card (≤128GB)
|
| Smart Alarm |
Smart Motion Detection
|
| One key Configuration |
SmartConfig (Wi-Fi networking One-key configuration)
|
| Interface Protocol |
Ezviz Cloud Proprietary Protocol
|
| General Function |
Dual Stream, Mirror Image
|
| Network Interface |
1*RJ45 10M/100M self-adaptive Ethernet Port
|
| Wireless Standard |
IEEE802.11b, 802.11g, 802.11n
|
| Frequency Range |
2.4 GHz ~ 2.4835 GHz
|
| Channel Bandwidth |
Support 20 MHz
|
| Security |
64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
|
| Transmission Rate |
802.11b: 11Mbps, 802.11g :54Mbps, 802.11n :150Mbps
|
| Operating Conditions |
-4⁰F to 140⁰F (−20 ℃ ~ 60 ℃), humidity less than 95% (non-condensing)
|
| Power Consumption |
5VDC ± 10%, 10W Maximum
|
| Dimensions |
4.45 x 3.68 x 3.68″(113mm x 93.5mm x 93.5mm)
|
| Weight | 0.64lb (292g) |
| Κωδικός κατασκευαστή | CS-CV240-B0-21WFR |
